Ultrasonic Cleaning Machines



The ultrasonic cleaning machines is engineered to perfection and are dimensionally accurate with sturdy construction. These are fabricated using the best grades of raw material and are manufactured in conformation to the industry standards.


Ultrasonic Cleaning Machines (Single Chamber)

1. Ultrasonic Cleaner 250 Watt - Size: 400mm ×300mm ×150mm: 18 lit
2. Ultrasonic Cleaner 500 Watt - Size: 500mm ×400mm ×200mm: 40 lit
3. Ultrasonic Cleaner 750 Watt - Size: 675mm ×475mm ×200mm: 63lit
4. Ultrasonic Cleaner 1000Watt - Size: 600mm ×400mm ×300mm: 75 liter

Ultrasonic Cleaning Machines (Multi Chamber)

1. Ultrasonic Cleaning Machine 4 Chamber 2000watt
2. Ultrasonic Cleaner + Filter 1000 watt
3. Ultrasonic Cleaner + Dryer + Filter 500watt/1000watt/1500watt

Technical Specification:
Wattage Size(mm) Lit Heater Frequency Input Supply
250Watt 400x300x150 18 250w 34KHZ 220+/- 2 VAC,50 Hz
500 Watt 500x400x200 40 600w 34KHZ 220+/- 2 VAC,50 Hz
750 watt 675x475x200 60 800w 34KHZ 220+/- 2 VAC,50 Hz
1000 watt 675x475x300 90 1000w 34KHZ 220+/- 2 VAC,50 Hz

Specifications for Ultrasonic Cleaning Machine
Ultrasonic Generator IGBT Based advanced technology, solid state
Timer: • Digital timer programmable between 0 to 99 min.
• In step of 1Minute.
• To set the ultrasonic ON time.
Heater; &
Temperature controller.
• Heater will be provided with digital temperature controller to
  Control the solvent temperature at 50 degree centigrade.
• A Separate ON/OFF switch will be provided for heater.
Construction of equipment: • Tank will be made up of SS 304, 16 gage material.
• All bends of tank would be rounded @ radius of R10.
• A lid will be provided for the tank, which would be made of SS304,
  16 gage materials
• Drain: 1/2 "SS ball valve will be provided for solvent drain.
• Equipment body will be made of SS material.
Basket/ tray  • A basket would be made of SS 304; 2 mm wire size & 1/2 inch Hole size.
• Basket will be provided with handles at both the sides for easy handling.
Additional features • Powerful & reliable cleaning
  • Built in microprocessor
• Built in digital thermometer & timer to set optimum conditions.
• Built in drain valve unit.
• Silicon rubber heater for durability & stability.
• Built in alarm function for noticing operation STOP

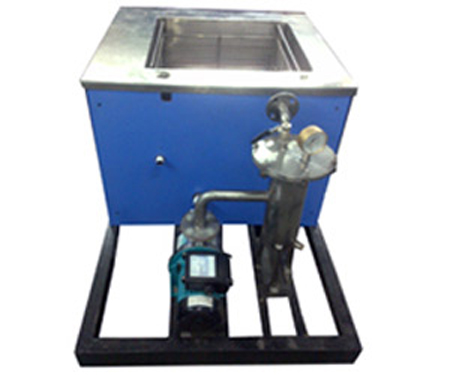

Ultasonic Single tank with Filter

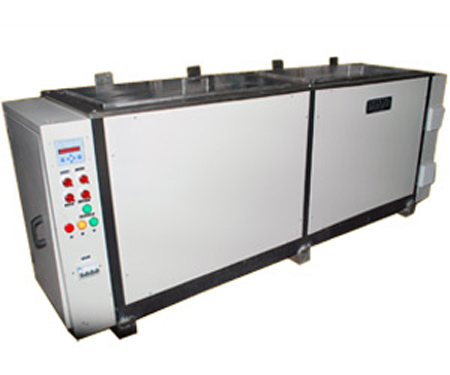

Ultarsonic Clening machine Machine
With Rinsing
Ultasonic Single tank with Filter
Ultarsonic Clening machine Machine With Rinsing

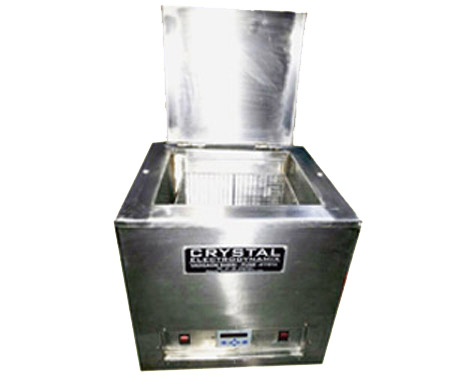

Ultasonic Cleaning Machine
Single Chamber

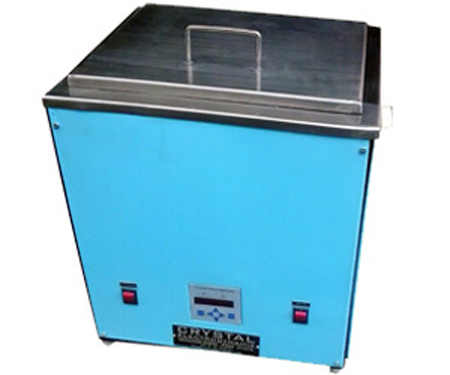

Ultasonic Cleaning Machine
Single Chamber

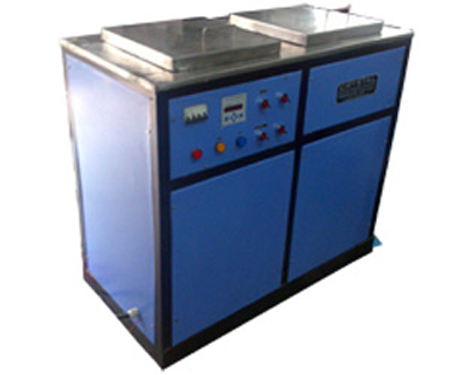

Ultasonic Cleaning and Dryer
Ultrasonic Plastic Welding Machine

Ultasonic Cleaning and Dryer

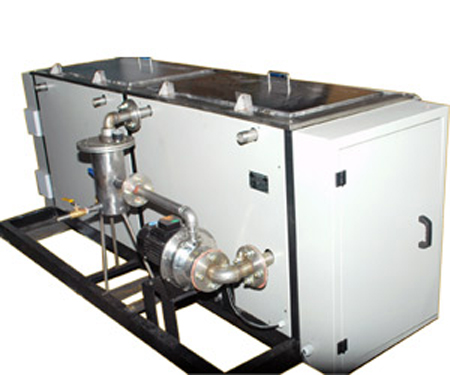

Ultrasonic Cleaning Machine
with Filter+ Dryer
Ultasonic Cleaning and Dryer
Ultrasonic Plastic Welding Machine

Ultrasonic Cleaning Machine
Multi Chamber

Ultasonic Cleaning and Dryer
